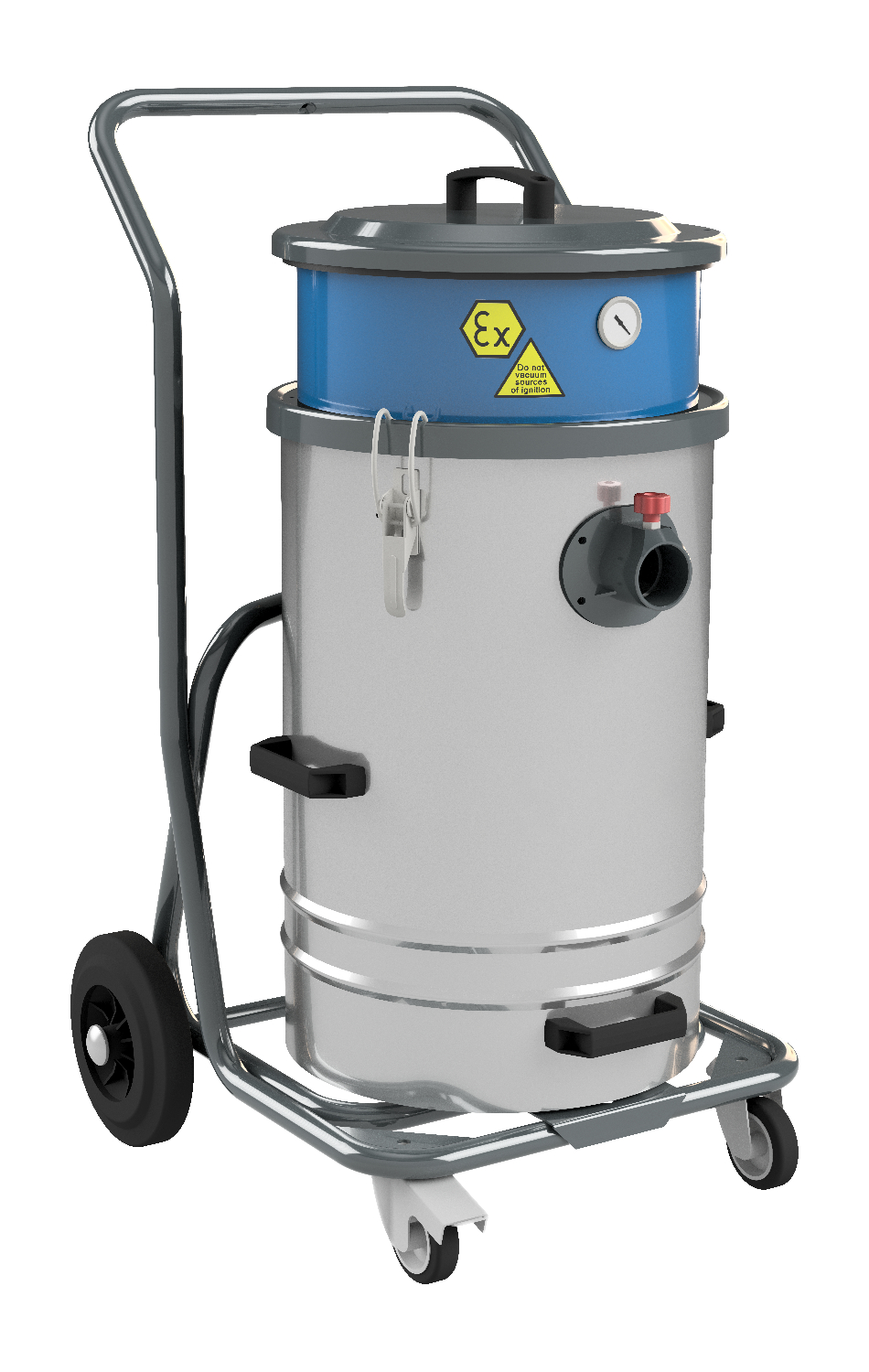

WD 3000 AIR Z22 - Air Operated industrial vacuum cleaner for dusts and liquids Atex certified

The WD 3000 Air Z22 is the most compact industrial vacuum cleaner in the range with Atex Z22 certified compressed air supply. This compressed air vacuum cleaner is ideal when the use of electricity is prohibited by regulations (ATEX regulations), or not recommended for safety reasons (e.g. on board a ship). ATEX certified Du-Puy vacuum cleaners are available with antistatic and stainless steel accessories for safe working. Equipped with a powerful and maintenance-free Venturi unit, it is suitable for use as part of a budget strategy to save on electricity costs when energy needs are very high. This air operated vacuum cleaner on wheels is suitable for Wet and Dry work, i.e. for vacuuming liquids, solids and dusts simultaneously.Its robustness and manoeuvrability make it the best compressed air vacuum cleaner for technical cleaning in workshops or on construction sites.
The WD 3000 Air Z22 in 5 points
- Operation with 1 Venturi unit, air flow rate of 150 m3/hour.
- Suitable for suctioning dust, solids and liquids, even simultaneously.
- Aluminium float and antistatic cat. M bag filter.
- 60 litre tilting container for easy emptying.
- 60 litre tilting container for easy emptying.
- Compact and lightweight, ideal for technical cleaning of work environments.
Applications:
- Food Industry
- Chemical-pharmaceutical
- Cleaning contractors
- Metalworking
Product Parameters
Description | Unit | M50 ATEX 2D - Atex Industrial vacuum cleaner for dust |
---|---|---|
Atex zones | ATEX Z20/21 | |
Marking | Ex II 2D Ex h lllC T160°C Da/Db | |
Voltage | V - Hz | 400 - 50 |
Power | kW | 4 |
Max waterlift | mmH2O | 2.300 |
Max air flow | m³/h | 420 |
Suction inlet | mm | 80 |
Filter Type | Star | |
Surface - Diameter | cm²-mm | 20.000 |
Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
Air load on filter | m³/m²/h | 225 |
Cleaning system | Manual | |
Collection tank | Steel | |
Discharge system | Roll-out container | |
Capacity | lt. | 100 |
Floating device | N./A. | |
Dimensions | cm | 120 x 65 x 155h |
